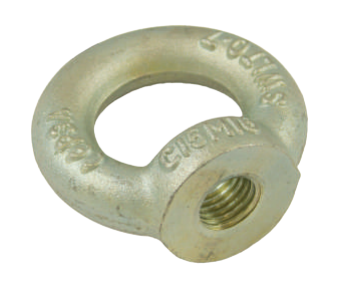

matière: Acier C15 estampé
finition: Zingué blanc
marquage : Ø, CE, CMU, fabricant, matière, numéro de lot
taraudage : ISO
|
Références |
Métrique | CMU (kg) |
CMU à 45° (kg) |

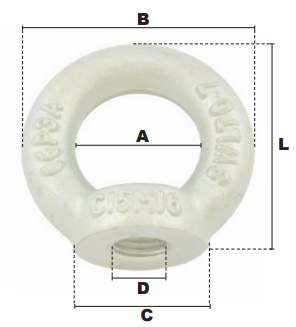

A (mm) |
B (mm) |
C (mm) |
E (mm) |
F (mm) |
L (mm) |
| PRALFG106 | M6 | 90 | 60 | 20 | 36 | 20 | 8 | 8,5 | 36 |
| PRALFG108 | M8 | 140 | 100 | 20 | 36 | 20 | 8 | 8,5 | 36 |
| PRALFG110 | M10 | 230 | 170 | 25 | 45 | 25 | 10 | 10 | 45 |
| PRALFG112 | M12 | 340 | 240 | 30 | 54 | 30 | 12 | 11 | 53 |
| PRALFG114 | M14 | 500 | 350 | 30 | 54 | 30 | 12 | 11 | 53 |
| PRALFG116 | M16 | 700 | 500 | 35 | 63 | 35 | 14 | 13 | 62 |
| PRALFG118 | M18 | 930 | 650 | 35 | 63 | 35 | 14 | 13 | 62 |
| PRALFG120 | M20 | 1 200 | 860 | 40 | 72 | 40 | 16 | 16 | 71 |
| PRALFG122 | M22 | 1 500 | 1 050 | 40 | 72 | 40 | 16 | 16 | 71 |
| PRALFG124 | M24 | 1 800 | 1 290 | 50 | 90 | 50 | 20 | 20 | 90 |
| PRALFG127 | M27 | 2 500 | 1 830 | 50 | 90 | 50 | 20 | 20 | 90 |
| PRALFG130 | M30 | 3 200 | 2 300 | 60 | 108 | 65 | 24 | 25 | 109 |
| PRALFG136 | M36 | 4 600 | 3 300 | 70 | 126 | 75 | 28 | 30 | 128 |
| PRALFG142 | M42 | 6 300 | 4 500 | 80 | 144 | 85 | 32 | 35 | 147 |
| PRALFG148 | M48 | 8 600 | 6 100 | 90 | 166 | 100 | 38 | 40 | 168 |
| PRALFG156 |
M56 |
11 500 | 8 200 | 100 | 184 | 110 | 42 | 45 | 187 |
| PRALFG164 | M64 | 16 000 | 11 000 | 110 | 206 | 120 | 48 | 50 | 208 |
