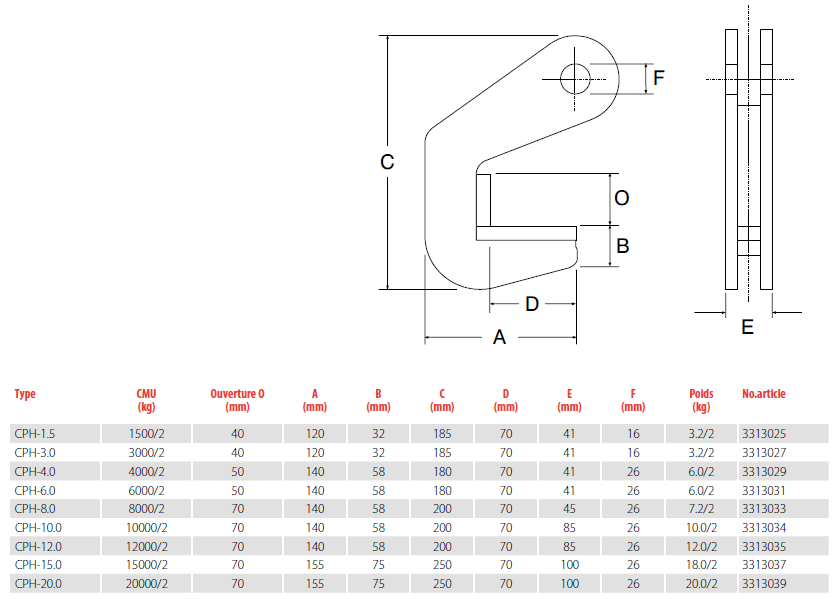

| Références | CMU (t) |
Modèle | A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
O (mm) |
X (mm) |
Poids (kg) |
| RH3313025 | 1,5 | CPH-1.5 | 120 | 32 | 185 | 70 | 41 | 16 | 40 | 23 | 3,2/2 |
| RH3313027 | 3 | CPH-3.0 | 120 | 32 | 185 | 70 | 41 | 16 | 40 | 23 | 3,2/2 |
| RH3313029 | 4 | CPH-4.0 | 140 | 58 | 180 | 70 | 41 | 26 | 50 | 23 | 6/2 |
| RH3313031 | 6 | CPH-6.0 | 140 | 58 | 180 | 70 | 41 | 26 | 50 | 23 | 6/2 |
| RH3313033 | 8 | CPH-8.0 | 140 | 58 | 200 | 70 | 45 | 26 | 70 | 25 | 7,2/2 |
| RH3313034 | 10 | CPH-10.0 | 140 | 58 | 200 | 70 | 86 | 26 | 70 | 44 | 10/2 |
| RH3313035 | 12 | CPH-12.0 | 140 | 58 | 200 | 70 | 86 | 26 | 70 | 44 | 12/2 |
| RH3313037 | 15 | CPH-15.0 | 155 | 75 | 250 | 70 | 100 | 26 | 70 | 59 | 18/2 |
| RH3313039 | 20 | CPH-20.0 | 155 | 75 | 250 | 70 | 100 | 26 | 70 | 59 | 20/2 |
Caractéristiques
Application
Attention
CMU de 1 500 kg à 20 000 kg
