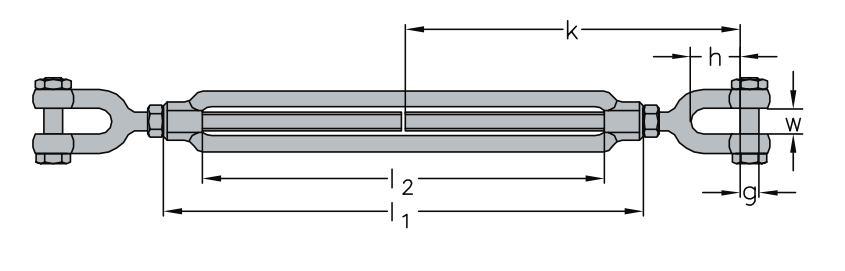

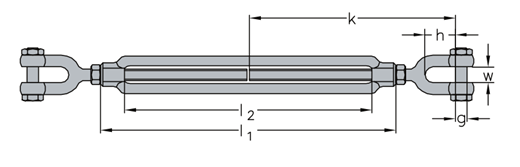

| Désignation Pouces |
L1 (mm) |
L2 (mm) |
W (mm) |
H (mm) |
g Pouces |
K (mm) |
CMU (kg) |
Poids (kg) |
Références |
| 3/8x6 | 180 | 152 | 12 | 22 | 5/16 | 137 | 540 | 0,5 | PRHTCH3/8X6 |
| 1/2x6 | 190 | 152 | 16 | 27 | 3/8 | 147 | 1000 | 0,8 | PRHTCH1/2X6 |
| 1/2x9 | 266 | 228 | 16 | 27 | 3/8 | 187 | 1000 | 0,9 | WA163401209 |
| 1/2x12 | 342 | 304 | 16 | 27 | 3/8 | 222 | 1000 | 1,1 | WA163401212 |
| 5/8x6 | 200 | 152 | 19 | 33 | 1/2 | 161 | 1590 | 1,3 | PRHTCH5/8X6 |
| 5/8x9 | 276 | 228 | 19 | 33 | 1/2 | 201 | 1590 | 1,5 | WA163405809 |
| 5/8x12 | 352 | 304 | 19 | 33 | 1/2 | 236 | 1590 | 1,7 | WA163405812 |
| 3/4x6 | 210 | 152 | 23 | 38 | 5/8 | 173 | 2360 | 2 | PRHTCH3/4X6 |
| 3/4x9 | 287 | 228 | 23 | 38 | 5/8 | 213 | 2360 | 2,4 | WA163403409 |
| 3/4x12 | 362 | 304 | 23 | 38 | 5/8 | 248 | 2360 | 2,7 | WA163403412 |
| 3/4x18 | 515 | 457 | 23 | 38 | 5/8 | 328 | 2360 | 3,4 | WA163403418 |
| 7/8x12 | 372 | 304 | 28 | 44 | 3/4 | 266 | 3270 | 4 | PRHTCH7/8X12 |
| 7/8x18 | 524 | 457 | 28 | 44 | 3/4 | 346 | 3270 | 4,9 | WA163407818 |
| 1 x12 | 381 | 304 | 30 | 52 | 7/8 | 286 | 4540 | 5,6 | PRHTCH1X12 |
| 1 x18 | 533 | 457 | 30 | 52 | 7/8 | 366 | 4540 | 6,8 | WA163410018 |
| 1 1/4x12 | 387 | 304 | 44 | 71 | 1 1/8 | 330 | 6890 | 9,8 | WA163411412 |
| 1 1/4x18 | 540 | 457 | 44 | 71 | 1 1/8 | 380 | 6890 | 11,6 | WA163411418 |
| 1 1/4x24 | 693 | 610 | 44 | 71 | 1 1/8 | 479 | 6890 | 13,6 | WA163411424 |
| 1 1/2x12 | 400 | 304 | 52 | 71 | 1 3/8 | 360 | 9710 | 15,4 | WA163411212 |
| 1 1/2x18 | 550 | 457 | 52 | 71 | 1 3/8 | 430 | 9710 | 18 | WA163411218 |
| 1 1/2x24 | 703 | 610 | 52 | 71 | 1 3/8 | 496 | 9710 | 19,3 | WA163411224 |
| 1 3/4x18 | 570 | 457 | 60 | 86 | 1 3/4 | 440 | 12700 | 23,6 | WA163413418 |
| 1 3/4x24 | 720 | 610 | 60 | 86 | 1 3/4 | 500 | 12700 | 26,8 | WA163413424 |
| 2 x24 | 735 | 610 | 64 | 95 | 2 | 540 | 16780 | 45 | WA163420024 |
| 2 1/2x24 | 800 | 610 | 73 | 113 | 2 1/2 | 620 | 27220 | 81 | WA163421224 |
| 2 3/4x24 | 800 | 610 | 89 | 106 | 2 3/4 | 610 | 34020 | 91 | WA163423424 |
