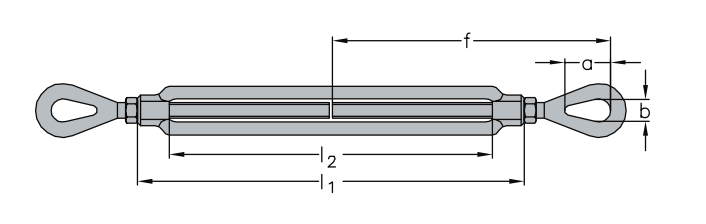

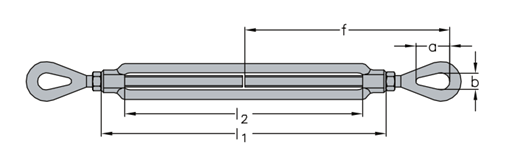

| Désignation Pouces |
L1 (mm) |
L2 (mm) |
A (mm) |
B (mm) |
F (mm) |
CMU (kg) |
Poids (kg) |
Références |
| 3/8x6 | 180 | 152 | 28 | 13 | 137 | 540 | 0,4 | WA163103806 |
| 1/2x6 | 190 | 152 | 36 | 18 | 153 | 1000 | 0,7 | WA163101206 |
| 1/2x9 | 266 | 228 | 36 | 18 | 193 | 1000 | 0,8 | WA163101209 |
| 1/2x12 | 342 | 304 | 36 | 18 | 228 | 1000 | 1 | WA163101212 |
| 5/8x6 | 200 | 152 | 44 | 22 | 177 | 1590 | 1,1 | WA163105806 |
| 5/8x9 | 276 | 228 | 44 | 22 | 217 | 1590 | 1,3 | WA163105809 |
| 5/8x12 | 352 | 304 | 44 | 22 | 252 | 1590 | 1,6 | WA163105812 |
| 3/4x6 | 210 | 152 | 54 | 25 | 196 | 2360 | 1,8 | WA163103406 |
| 3/4x9 | 287 | 228 | 54 | 25 | 236 | 2360 | 2,1 | WA163103409 |
| 3/4x12 | 362 | 304 | 54 | 25 | 271 | 2360 | 2,4 | WA163103412 |
| 3/4x18 | 515 | 457 | 54 | 25 | 351 | 2360 | 3,1 | WA163103418 |
| 7/8x12 | 372 | 304 | 60 | 31 | 287 | 3270 | 3,6 | WA163107812 |
| 7/8x18 | 524 | 457 | 60 | 31 | 367 | 3270 | 4,4 | WA163107818 |
| 1 x12 | 381 | 304 | 76 | 36 | 323 | 4540 | 5,1 | WA163110012 |
| 1 x18 | 533 | 457 | 76 | 36 | 403 | 4540 | 6,3 | WA163110018 |
| 1 1/4x12 | 387 | 304 | 90 | 46 | 360 | 6890 | 8,6 | WA163111412 |
| 1 1/4x18 | 540 | 457 | 90 | 46 | 440 | 6890 | 10,4 | WA163111418 |
| 1 1/4x24 | 693 | 610 | 90 | 46 | 495 | 6890 | 12,2 | WA163111424 |
| 1 1/2x12 | 400 | 304 | 104 | 54 | 390 | 9710 | 13,2 | WA163111212 |
| 1 1/2x18 | 550 | 457 | 104 | 54 | 465 | 9710 | 15,8 | WA163111218 |
| 1 1/2x24 | 703 | 610 | 104 | 54 | 540 | 9710 | 18 | WA163111224 |
| 1 3/4x18 | 570 | 457 | 117 | 59 | 475 | 12700 | 22 | WA163113418 |
| 1 3/4x24 | 720 | 610 | 117 | 59 | 577 | 12700 | 26 | WA163113424 |
| 2 x24 | 735 | 610 | 143 | 67 | 632 | 16780 | 37,6 | WA163120024 |
| 2 1/2x24 | 800 | 610 | 165 | 79 | 665 | 27220 | 70 | WA163121224 |
