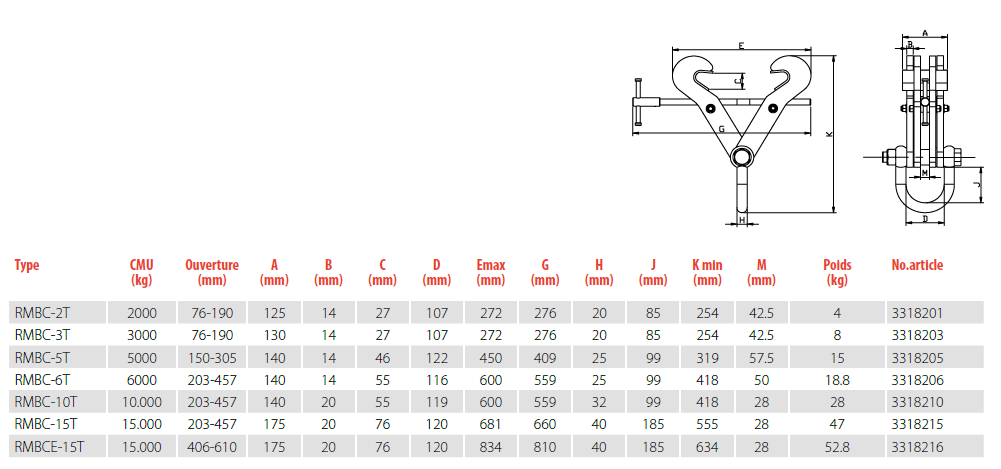

| Références | CMU (t) |
Modèle | Ouverture (mm) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E max. (mm) |
G (mm) |
H (mm) |
J (mm) |
K min. (mm) |
M (mm) |
Poids (kg) |
| RH3318201 | 2 | RMBC-2T | 76-190 | 125 | 6 | 27 | 107 | 272 | 276 | 20 | 85 | 254 | 42,5 | 4 |
| RH3318203 | 3 | RMBC-3T | 76-190 | 130 | 14 | 27 | 107 | 272 | 276 | 20 | 85 | 254 | 42,5 | 8 |
| RH3318205 | 5 | RMBC-5T | 150-305 | 140 | 14 | 46 | 122 | 450 | 409 | 25 | 99 | 319 | 57,5 | 15 |
| RH3318206 | 6 | RMBC-6T | 203-457 | 140 | 14 | 55 | 116 | 600 | 559 | 25 | 99 | 418 | 50 | 18,8 |
| RH3318210 | 10 | RMBC-10T | 203-457 | 140 | 20 | 55 | 119 | 600 | 559 | 32 | 99 | 418 | 28 | 28 |
| RH3318215 | 15 | RMBC-15T | 203-457 | 175 | 20 | 76 | 120 | 681 | 660 | 40 | 185 | 555 | 28 | 47 |
| RH3318216 | 15 | RMBCE-15T | 406-610 | 175 | 20 | 76 | 120 | 834 | 810 | 40 | 185 | 634 | 28 | 52,8 |
